為大家分享臺灣LINK-FLEX橡膠防震接頭管線布置�
上海淞江減震器集團有限公�官方網站為大家分享一 下臺灣LINK-FLEX橡膠防震接頭管線布置圖，該文章轉載于LINK-FLEX網站，分享給更多網友學習�
典型管線布置�
TYPICAL PIPE LINE LAYOUT

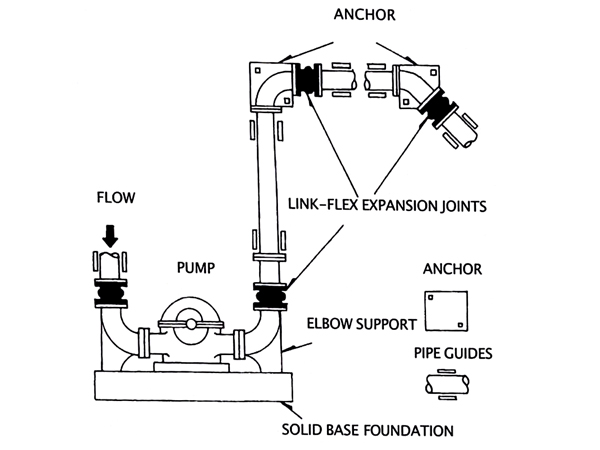

�1�
使用LINK-FLEX的典型管道布局
設備和管道正確錨固時的伸縮縫�
Figure 1�
Typical Piping Layout Utilizing LINK-FLEX
Expansion Joints When Equipment And Piping are properly anchored.

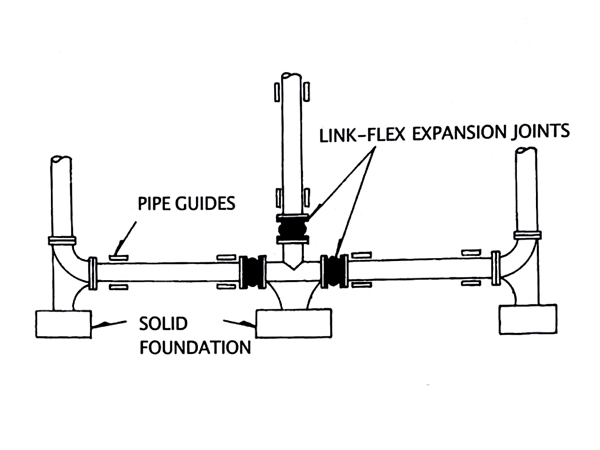

�2�
使用Link flex的典型管道布局
伸縮縫和在分支位置正確使用錨固件�
Figure 2�
Typical piping layout utilizing Link-flex
expansion joints and the proper use of anchors in branch locations.

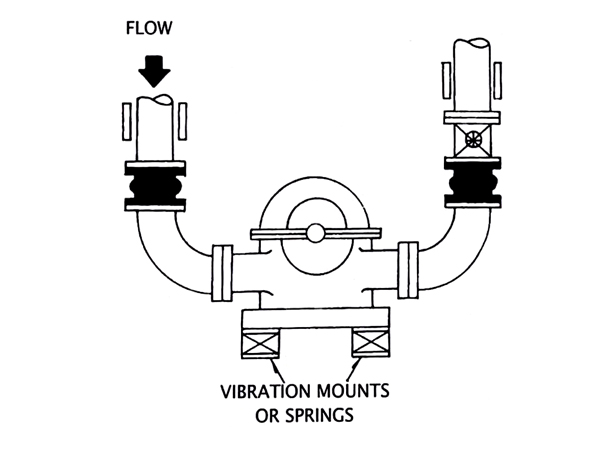

�3�
典型的泵安裝，帶有連桿伸縮接頭，采用振動支座�
Figure 3�
Typical pump lnstallation with Link-flex expansion joints utilizing vibration mounts.

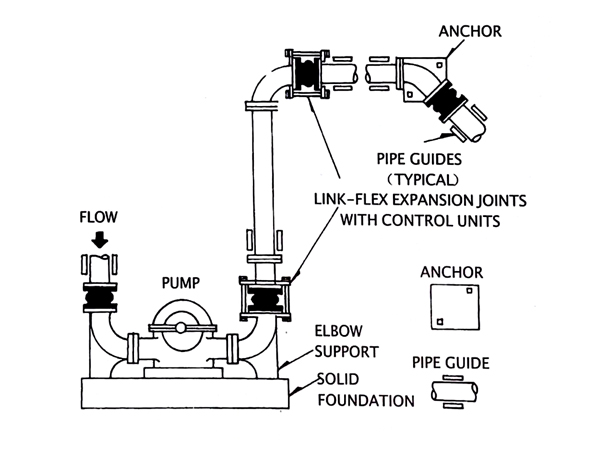

�4�
典型的管道布置圖，顯示了當適當的系統錨環受到限制時，控制單元和連桿伸縮接頭的使用�
Figure 4�
Typical piping layout showing the use of control units with the Link-Flex Ex-pansion joints when proper sustem ancho-ring is limited.
以上文章轉載于LINK-FLEX網站，分享給網友，如有侵權請聯系021-33666665刪除�
